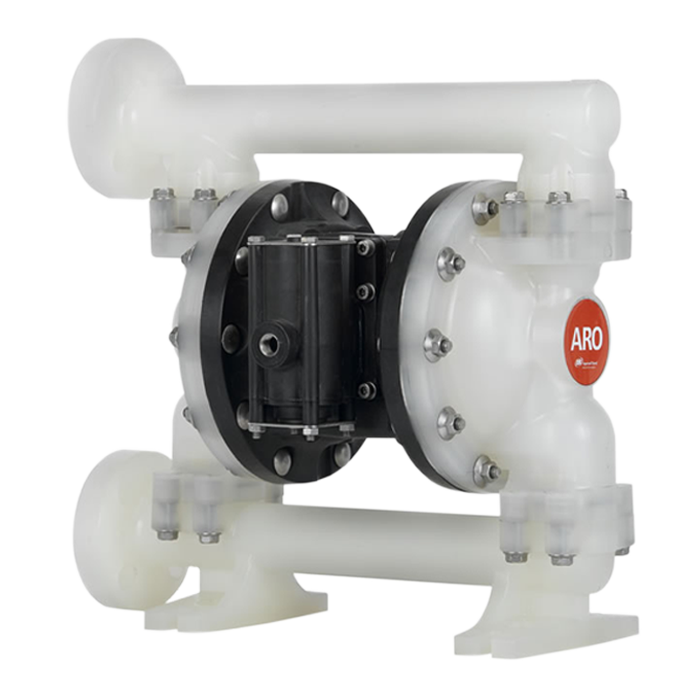

1'' EXP Non-Metallic Air Operated Diaphragm Pump

Specifications

Maximum Flow gpm (lpm): 53(200)

Maximum Discharge Pressure psi (bar): 120(8.3)

Fluid Ports Inlet/Outlet (bsp): 1" 11-1/2 NPTF-1

                                                1" ANSI/DIN Flange

Material of Construction: Polypropylene, PVDF

Maximum Solids in (mm): 1/8(3.2)

Maximum Dry Suction Lift ft (m): 19(5.7)
